Jones Titanium MTB Frame

SPECIAL THANKS TO THESPOKEN.CC AND JONESBIKES.COM FOR THE IMAGES CONTAINED IN THIS ARTICLE!

The Jones titanium mtb frame represents a revolutionary approach to mountain bike design through its unique Spaceframe Plus LWB architecture. Jeff Jones developed this three-dimensional triangulated structure after extensive testing on Southern Oregon’s technical trails.

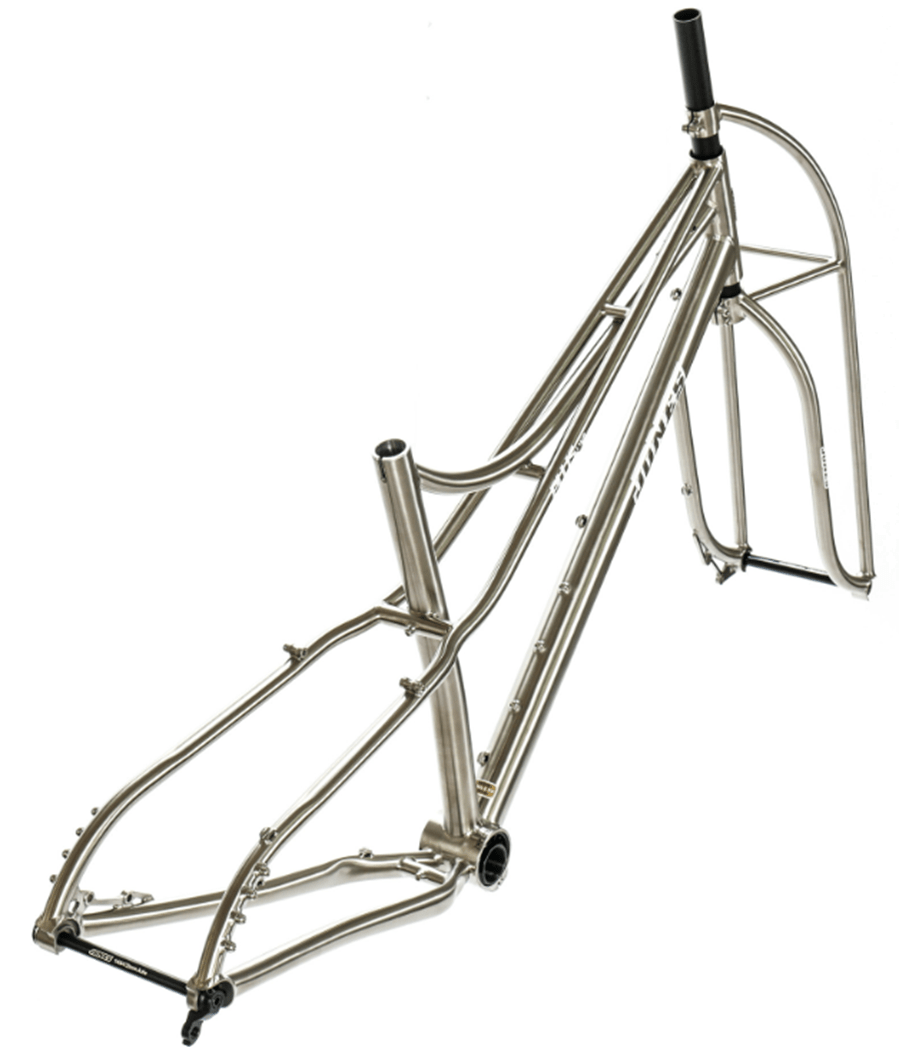

Frame Design Philosophy and 3D Spaceframe Architecture

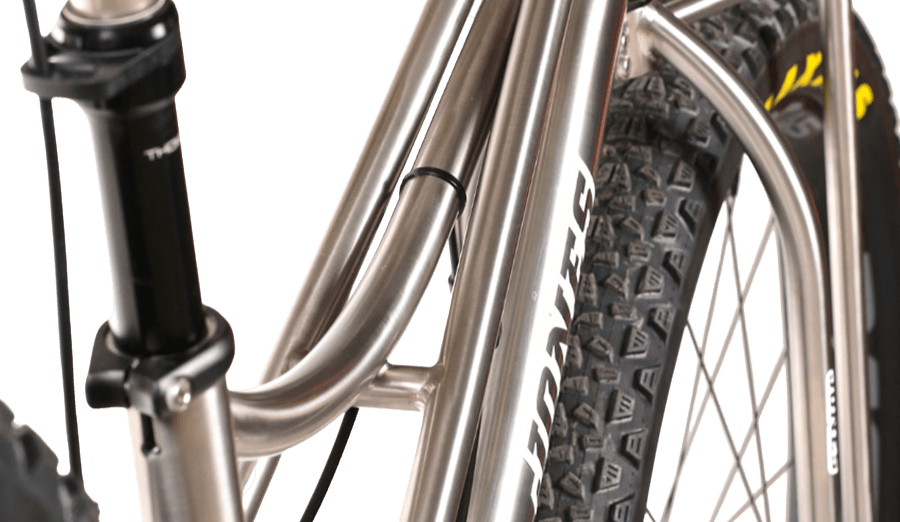

The spaceframe design creates triangles when viewed from all angles. This geometry provides vertical compliance while maintaining torsional rigidity. The titanium mtb frame uses multiple curved upper tubes that flex in controlled patterns.

These tubes are intentionally long and thin. They’re braced at specific points to allow calculated deflection. This engineered flex absorbs trail vibrations and impacts.

The downtube, chain stays, and seat tube feature larger diameters. This oversizing prevents unwanted lateral flex during hard pedaling efforts. The combination creates a frame that’s compliant vertically but stiff horizontally.

The low-slung top tube arrangement serves multiple purposes. It provides exceptional stand over clearance for technical terrain. Riders can move freely without frame interference. This design element proves crucial when navigating tight switchbacks or rocky sections.

The truss fork mirrors the frame’s design philosophy. Hand-welded titanium tubes create a structure that eliminates brake shudder. The fork’s construction complements the titanium mtb frame’s ride characteristics perfectly.  Premium MTB Disc Brake Pads – Premium resin compound pads engineered for consistent stopping power and reduced noise on mountain bike disc brakes.

Advanced Geometry Specifications and Handling Characteristics

The geometry numbers reveal careful engineering choices. The 67.5-degree head tube angle appears slack by traditional standards. However, Jones pairs this with 76mm of fork rake.

This combination creates a short trail measurement. The result is quick handling despite the relaxed head angle. This setup provides stability at speed while maintaining agility.

The 71-degree seat tube angle positions riders centrally within the titanium mtb frame. This angle works with straight seat posts for most riders. Taller cyclists can use setback posts for additional adjustment.

The 19-inch chain stays contribute to the bike’s planted feel. This length provides excellent climbing traction. Standing pedaling produces no front wheel lift.

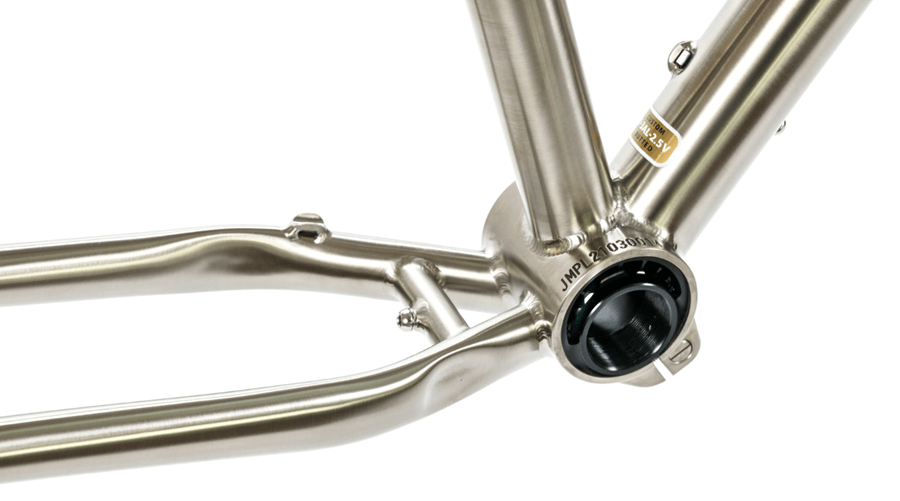

The eccentric bottom bracket system adds versatility. It offers 12mm of height adjustment. Riders can optimize bottom bracket drop for different wheel sizes.

With the EBB in the top position, bottom bracket drop measures 76mm. Moving it to the bottom position increases drop to 88mm. This adjustability accommodates both 29″ and 29+ wheelsets.

The frame geometry creates what Jones calls a “sweetspot” for rider positioning. This isn’t about tire contact patch. It refers to the range of effective riding positions within the frame.

Material Construction and Component Integration

The titanium mtb frame uses 3AL-2.5V titanium alloy tubing throughout. This aerospace-grade material offers specific properties ideal for bicycle construction. It provides natural vibration damping without sacrificing strength.

TIG welding joins all frame tubes. The welds undergo careful heat treatment processes. This ensures consistent material properties throughout the structure.

The titanium construction delivers durability without weight penalties. The metal resists corrosion naturally. It maintains its properties through years of use. Chain Lubrication – resist your chain from corrosion keep it properly lubricated!

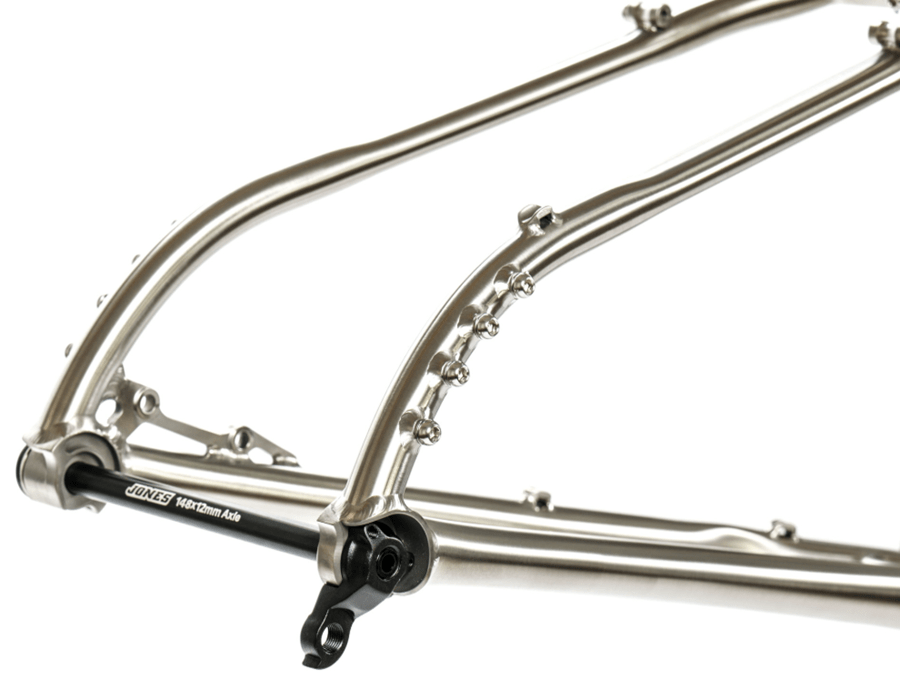

The rear triangle uses 148mm thru-axle spacing. This wider standard accommodates modern 11 and 12-speed drivetrains. The spacing provides clearance for 29×3″ tires with all gear combinations.

Jones thru-axle bolts replace traditional quick releases. These custom fasteners are lighter than standard alternatives. They sit flush against the titanium mtb frame for cleaner lines.

The 51mm IS disc brake mounting system ensures consistent braking. The mount positioning eliminates flex-induced brake rub. Both frame and fork use identical mounting standards.

Component integration extends to cable routing. The frame accommodates both mechanical and hydraulic systems. Routing paths minimize cable length while protecting them from damage.

Versatility Features and Mounting Configurations

The titanium mtb frame includes extensive mounting options for accessories. Triple bottle boss arrangements appear on both top and bottom downtube surfaces. These accommodate standard water bottles or cargo cages.

Medium and large sizes add an additional bottle mount near the headtube. This position works well for tool storage or additional hydration.

Multiple rear rack mounting points allow height adjustment. Riders can optimize rack position for different tire sizes. The mounting system accommodates both traditional racks and bike packing-specific designs.

Fender mounts integrate seamlessly into the frame design. Full coverage fenders fit without compromising tire clearance. The mounting points work with various fender widths.

Tire clearance exceeds 10mm on each side with 29×3″ tires. This generous spacing prevents mud buildup. With standard 29″ tires, clearance increases dramatically. Hycline 2-Pack Mountain Bike Tires – Folding replacement high performance bicycle tires with inner tubes

Folding Replacement High-Performance Wear-Resistant Bicycle Tires and Pair Inner Tubes

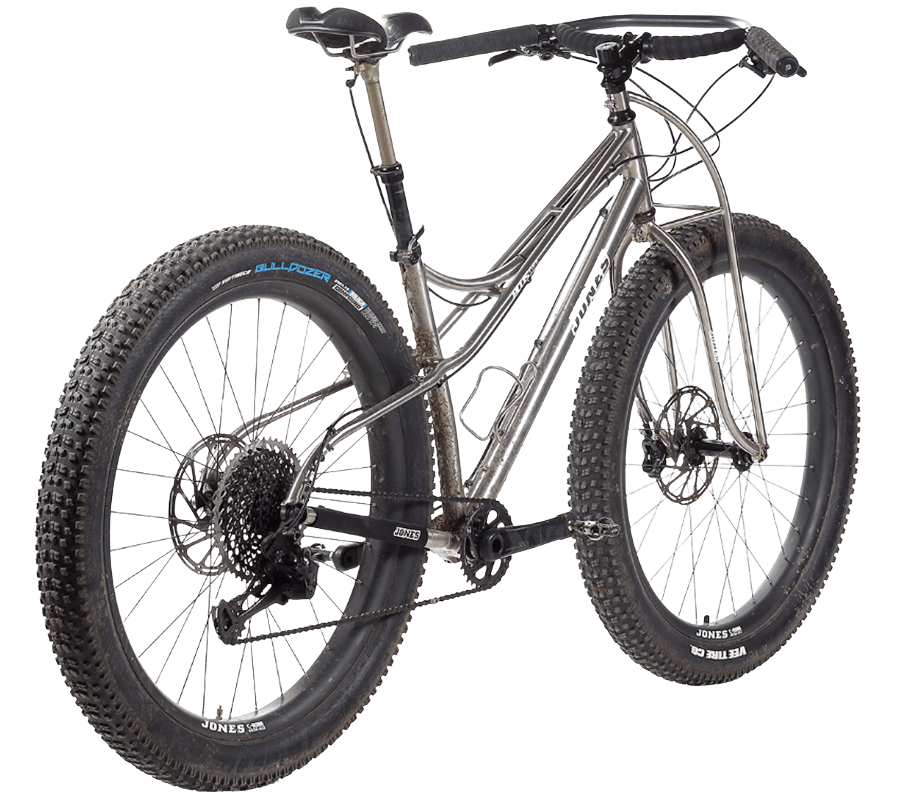

The frame accepts three distinct wheel configurations. It runs 29″ wheels for traditional mountain biking. 29+ wheels provide additional cushioning and traction. The design even accommodates 27.5×4″ fat bike wheels.

Chain ring clearance allows for various drivetrain configurations. Single chainring setups have abundant space. The design accommodates both traditional and direct-mount derailleurs.

The versatile mounting system supports different riding styles. Stripped down, it works for aggressive trail riding. Fully loaded, it handles extended bike packing expeditions.

Jeff Jones designed this titanium mtb frame without market research influence. He created it based on functional requirements discovered through extensive riding. Each element serves a specific performance purpose.

The Spaceframe Plus LWB proves that longer wheelbases don’t compromise handling. Proper geometry development maintains quick steering response. The design challenges conventional mountain bike design assumptions.
