The Van Nicholas Pioneer 650b: When European Engineering Meets Japanese Touring

SPECIAL THANKS TO THE SPOKEN FOR THE IMAGES CONTAINED IN THIS ARTICLE!

This week’s featured build, the 650b Van Nicholas Pioneer, demonstrates how one Vienna-based designer transformed a Dutch titanium frame into a Japan-ready touring machine through careful component selection and wheel size adaptation. For the bicycle tourist, Japan is a heavenly destination. It is filled simultaneously with bright excitement and serene hideaways. You can pitch a tent just about anywhere, the locals are polite, the scenery and culture is spellbinding, and so is the terrain.

From Dutch Design to Japanese Dreams: The Van Nicholas Pioneer Story

Van Nicholas is a Dutch company that specializes in bicycles for the dedicated European tourist. Their frames are renowned among long-distance cyclists for titanium construction that balances durability with ride quality. This particular Pioneer model, originally designed for 26-inch wheels, has been reimagined by Martin Zeplichal, a Viennese designer and developer who previously built the Cinelli Porteur featured in this series. To complement touring setups like the Pioneer, many riders turn to the BV Bicycle Panniers—a best-selling Amazon accessory that adds reliable storage capacity for long-distance adventures.

Zeplichal’s Pioneer represents a departure from standard European touring specifications. Instead of maintaining the original 26-inch wheel configuration common in European touring circles, he chose to adapt the frame for 650b wheels — a size more readily available in Japanese bike shops and better suited to the mixed terrain found throughout the country. The decision reflects practical touring wisdom: when traveling internationally, component availability becomes as important as performance characteristics.

The titanium frame serves as the foundation for this transcontinental build. Titanium offers specific advantages for touring applications: corrosion resistance eliminates paint maintenance concerns, the material’s natural flex characteristics reduce road vibration over long distances, and the strength-to-weight ratio surpasses both steel and aluminum alternatives. Van Nicholas frames are manufactured using aerospace-grade 3Al-2.5V titanium tubing, providing a lifetime of service without the weight penalty of steel touring frames.

650b Conversion Ingenuity: When 26″ Meets Japanese Standards

The conversion from 26-inch to 650b wheels presented a technical challenge. The 584mm BSD (bead seat diameter) of 650b wheels differs significantly from the 559mm BSD of 26-inch wheels, creating a 12.5mm radius difference that affects brake reach and frame clearance. Zeplichal solved this compatibility issue through Paul Components’ Motolite brakes, which feature vertical adjustment capability spanning 15mm. This adjustment range allows riders to run 650b or even 700c wheels on frames designed for 26-inch wheels.

Paul Components manufactures the Motolite brakes using CNC-machined aluminum construction with stainless steel hardware. The vertical adjustment mechanism operates through slotted mounting holes and serrated washers that lock the brake position once set. This design maintains the brake’s structural integrity while providing the flexibility needed for wheel size conversions. The brakes deliver 85mm of reach when fully extended, accommodating the larger wheel diameter while maintaining proper pad-to-rim contact.

The 650b wheel size offers distinct advantages for mixed-surface touring. The larger diameter compared to 26-inch wheels improves rollover capability on rough roads, while the smaller diameter compared to 700c wheels provides additional tire clearance for wider rubber and fenders. Japanese touring routes often transition between paved roads and gravel paths, making the 650b format particularly suitable. Additionally, 650b tires and tubes remain widely stocked in Japanese bike shops, simplifying replacement logistics during extended tours.

Aluminum fenders complement the wheel setup, providing weather protection essential for year-round touring. The fenders mount directly to the frame’s braze-ons, maintaining proper coverage over the wider 650b tires while allowing sufficient clearance for debris evacuation.

Components That Tell Stories: Vintage Meets Modern Performance

Zeplichal’s component selection reflects a philosophy of allowing materials to develop character through use. The titanium frame and polished aluminum parts currently display factory finishes, but extended touring will create surface patination that documents the journey. This approach treats the bicycle as both tool and travelogue.

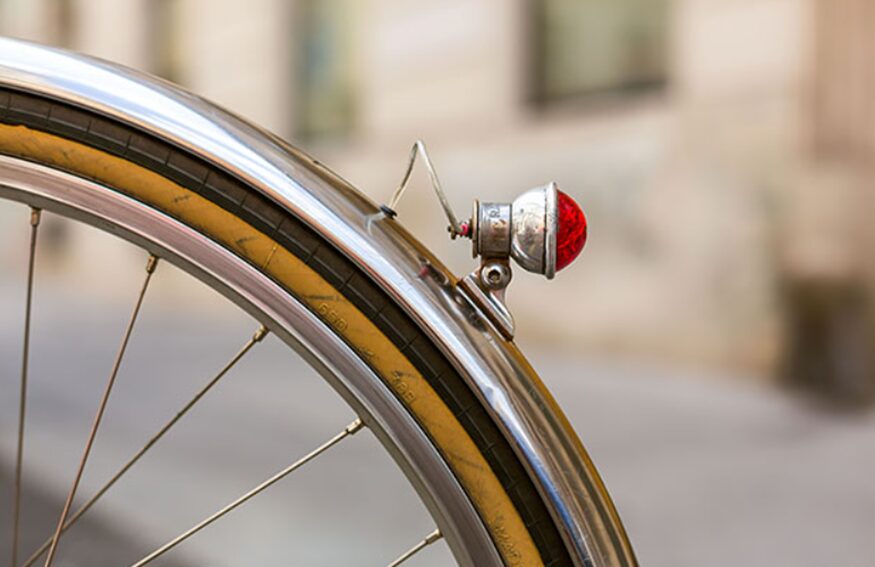

The lighting system exemplifies this blend of vintage aesthetics and modern functionality. A Radios rear light from the 1960s has been retrofitted with LED internals, maintaining period-correct appearance while delivering contemporary visibility. The original incandescent bulb consumed 6 watts and produced 15 lumens; the LED conversion draws 0.6 watts while generating 50 lumens. Power comes from a SON Edelux dynamo hub, eliminating battery dependency during extended tours.

The front lighting employs a custom mount positioned atop the aluminum fenders. This mounting location places the beam above wheel spray while maintaining a low center of gravity. The SON Edelux II headlight produces 100 lux at the center of its beam pattern, exceeding German StVZO regulations for bicycle lighting. The dynamo hub generates 3 watts at 6 volts when traveling above 15 km/h, sufficient to power both front and rear lights continuously.

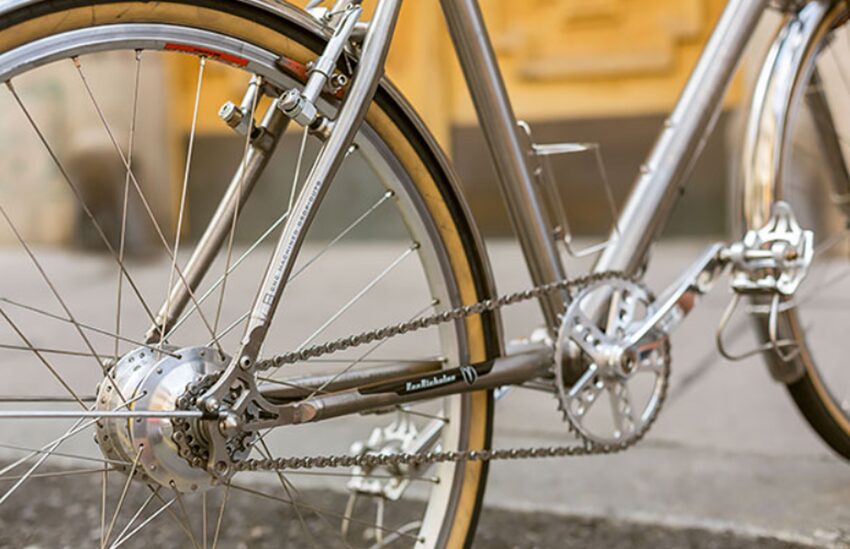

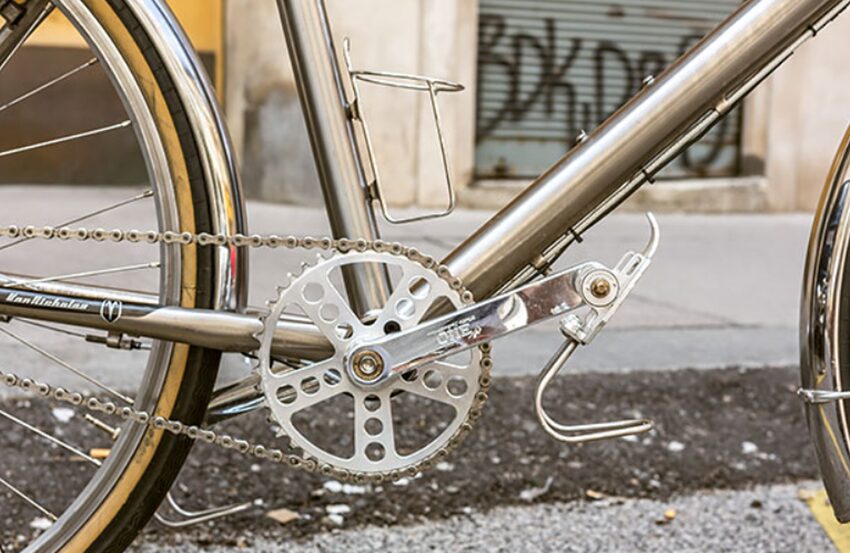

White Industries supplies the crankset, featuring high-polish aluminum arms and a 110mm BCD spider compatible with compact chainrings. The company machines these cranks from 7075-T6 aluminum, achieving a strength-to-weight ratio that rivals carbon fiber alternatives. The crankset interfaces with an eccentric bottom bracket — a component typically associated with single-speed applications but chosen here for its robust sealed bearing construction. Eccentric bottom brackets eliminate the need for horizontal dropouts or chain tensioners, simplifying drivetrain maintenance during tours.

Built for the Long Haul: Rohloff Hub and the Promise of Japanese Adventures

The Rohloff Speedhub 500/14 internal gear hub anchors the rear wheel, representing the apex of touring drivetrain technology. This German-engineered hub contains 14 evenly-spaced gears providing a 526% range — comparable to a 27-speed derailleur system but enclosed within a sealed aluminum shell. Each gear step represents a 13.6% change, allowing precise cadence management across varying terrain.

Internal gear hubs offer specific advantages for touring applications. The sealed construction protects shifting mechanisms from contamination, critical when traversing dusty roads or muddy paths. All maintenance involves simple oil changes every 5,000 kilometers, eliminating derailleur adjustments and cassette replacements. The straight chain line reduces wear on both chain and sprocket, extending replacement intervals beyond 10,000 kilometers under touring loads.

The Rohloff hub’s construction tolerates the sustained loads of loaded touring better than derailleur systems. The internal components are manufactured from case-hardened steel, designed to handle input torques up to 250Nm — well above the 100Nm typically generated by touring cyclists. This overbuilt construction ensures reliability across Japanese mountain passes where gradient changes demand frequent shifting under load.

Weight considerations often deter cyclists from internal gear hubs, but touring priorities differ from racing requirements. The Rohloff hub adds approximately 700 grams compared to a comparable derailleur system, but eliminates the need for spare derailleurs, hangers, cables, and cassettes in the touring kit. The net weight difference becomes negligible when considering the complete touring setup.

This Van Nicholas Pioneer demonstrates how thoughtful component selection transforms a European frame into a machine optimized for Japanese touring. The 650b conversion provides practical benefits, the Rohloff hub ensures mechanical reliability, and the dynamo lighting system offers self-sufficiency. Zeplichal’s build prioritizes function over fashion, creating a bicycle prepared for the realities of international touring rather than showroom appeal. When this Pioneer reaches Japanese roads next year, it will serve its intended purpose: providing reliable transportation through a country where bicycle touring remains both practical transportation and cultural exploration.
